-- Corsa Project 1: Front Suspension --
Page: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
It is common to see the front of our cars a couple of inches higher than the rear even with a full tank of fuel. Some cut a coil or two and adjust the alignment accordingly. This stiffens the ride because the spring rate goes up as the active coils are reduced. I for one like the way the corvair is sprung. So when it came time to rebuild the front suspension I installed a set of 2" dropped spindles from a S-10 pickup. The lower ball joint taper required a bushing but the center to center dimension is very close. Fringe benefits include disc brakes! The cast steering arm (from the S-10) was cut off and holes were added to retain my quick steering arms. Switching from drums to disks puts more unsprung weight on the suspension. To help counter this, I installed aluminum calipers. I replaced the rotted rubber with polyurathane. I am very happy with the feel and responce. The caliper placement forced me to switch to 15" rims for clearance. I chose 3rd generation camaro rims with 205 60 R15 tires. The grey nearly matches the Corsa cove. Bonus! |

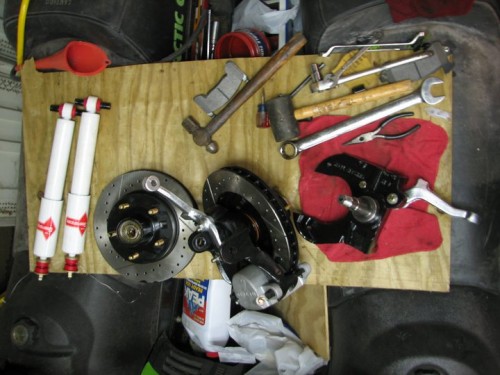

This is the left side. The spindle is drilled for the speedometer cable. Also,you can see the bushing on the lower ball joint taper. | |

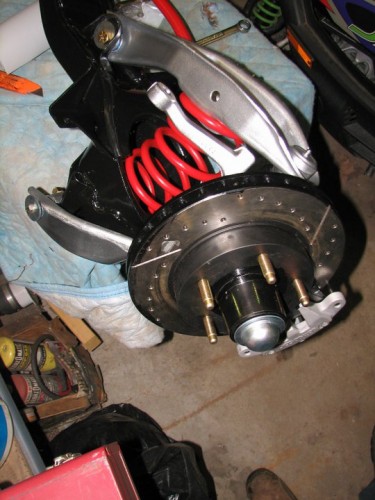

Partially Assembled | |

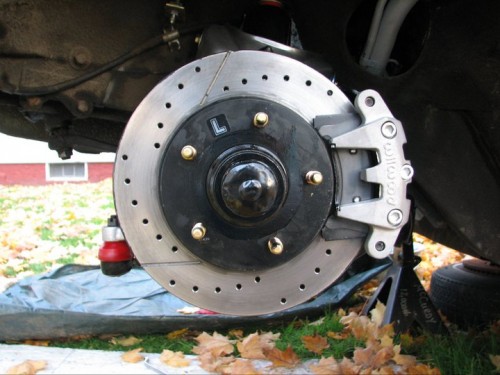

Installed! | |
